NY-GN Rail Fastening System
  • NY-GN Rail Fastening System
  • NY-GN Rail Fastening System
  • NY-GN Rail Fastening System
  • NY-GN Rail Fastening System
  • NY-GN Rail Fastening System
  • NY-GN Rail Fastening System
  • NY-GN Rail Fastening System

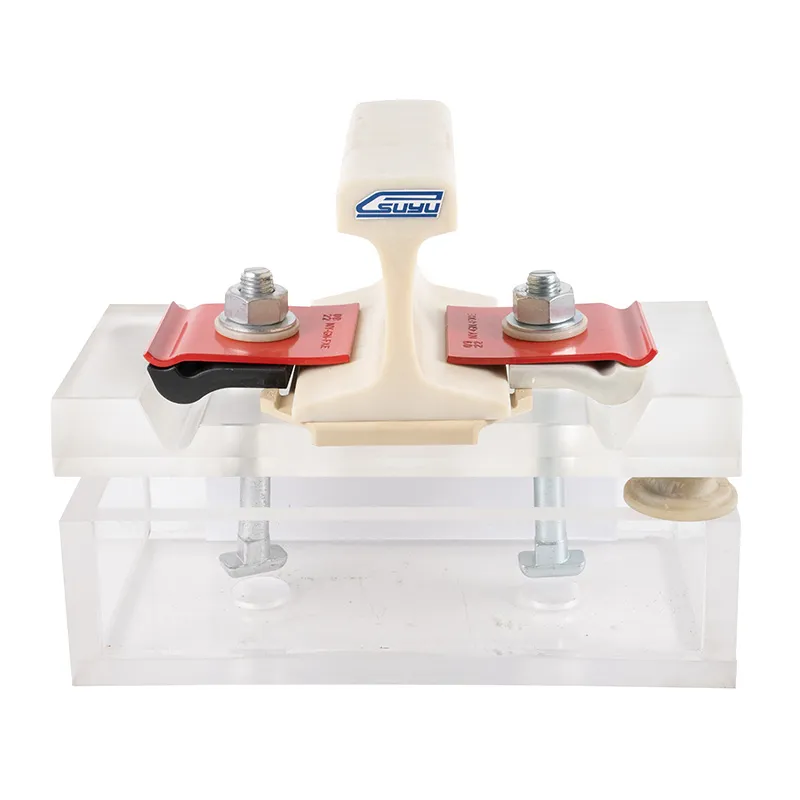

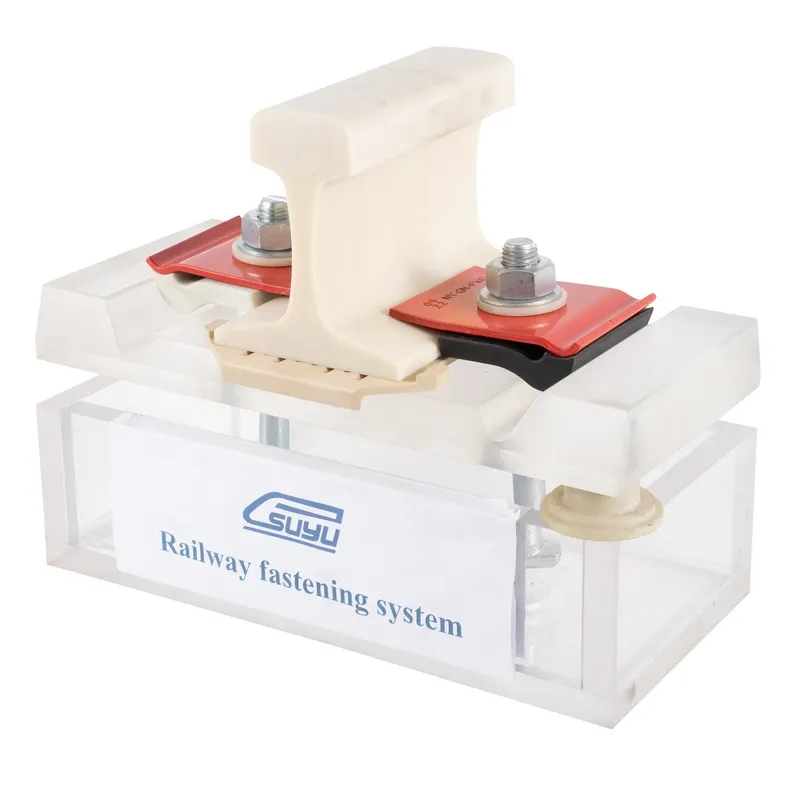

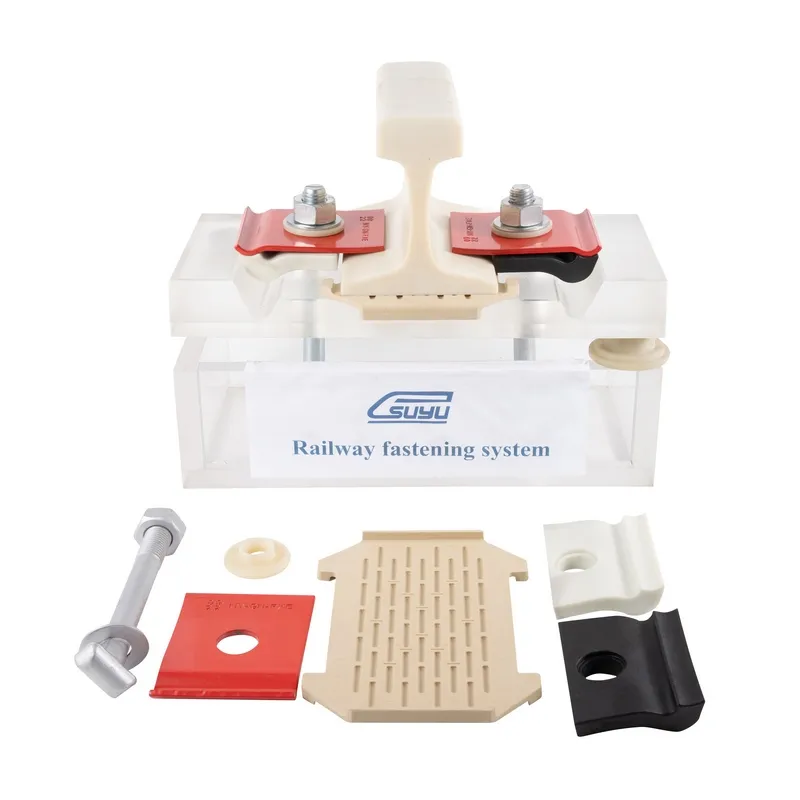

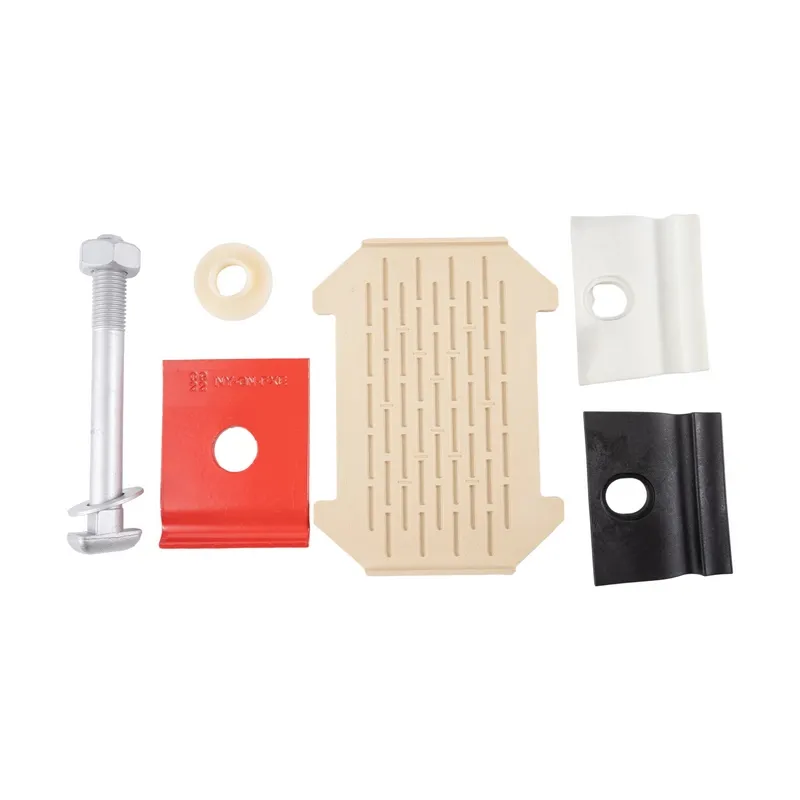

NY-GN rail fastening system is suitable for 115RE rail. One complete set includes 4 pcs SL bolts, 4 pcs NY-GN elastic plates, 4 pcs NY nylon washers, 2 pcs insulator No.6, 2 pcs insulators No.8, and 2pcs rail pad U-2.

Technical Parameters
Part name Item Technical requirement Remark

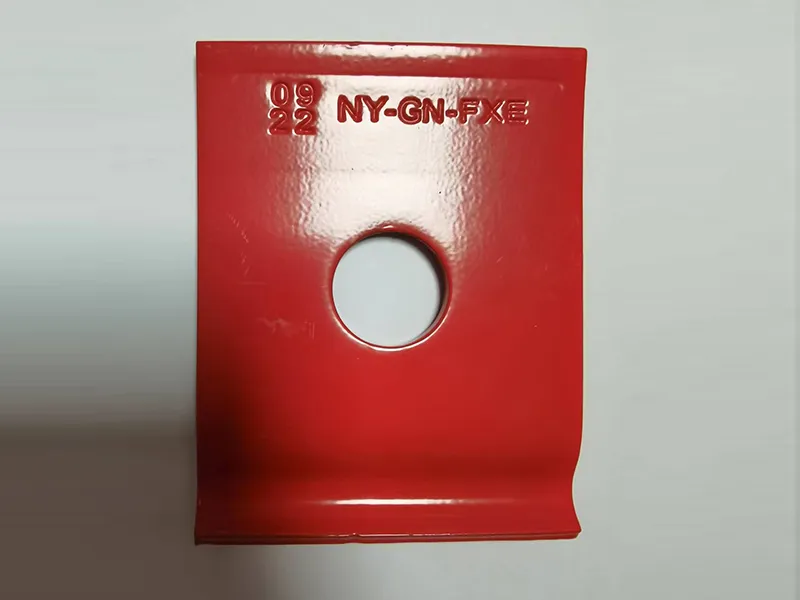

NY-GN elastic plate Type 5mm Thickness Application for different rail type
Material 60Si2Mn Chemical composition(%): C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03
Finish Plain oiled, red color painting, or upon request Offered as ordered
Hardness 42-47HRC
Standard refers to DIN17221, GB/T1222

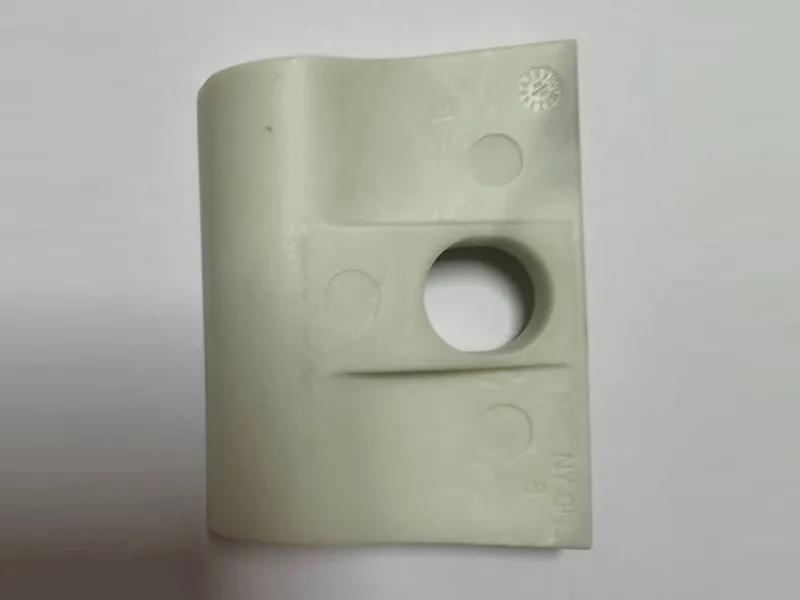

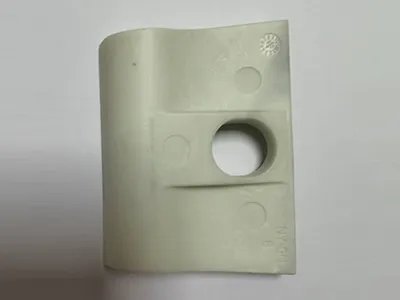

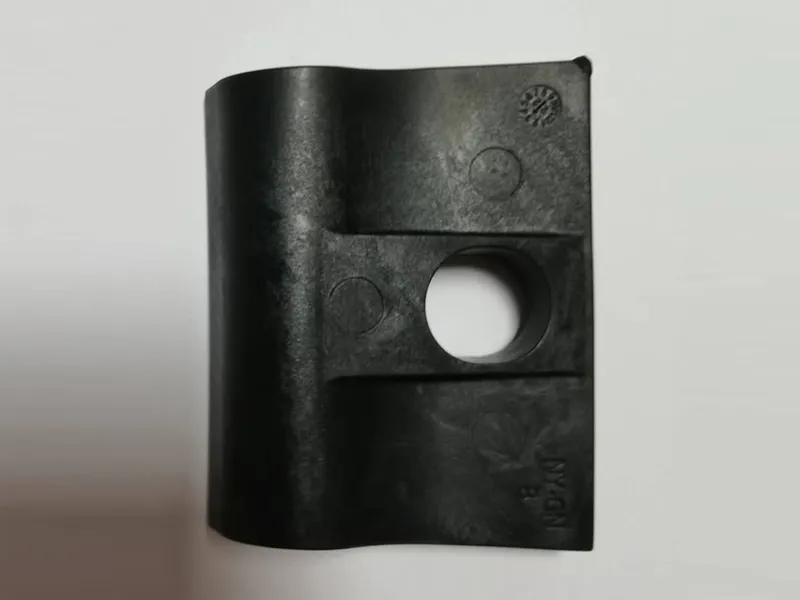

NY-GN Insulator No.6& No.8 Type Suitable for UIC54, 115RE rails
Material Reinforced Nylon 6 (PA6+30%GF) Density: 1.39g/cm³ Tensile strength: 165Mpa Elongation: 3.5% Melting point: 226℃ Insulation resistance: ≥1.9×1012Ω Glass fiber content: 30-35% Hardness: ≥114HRR
Color Black, white or upon request

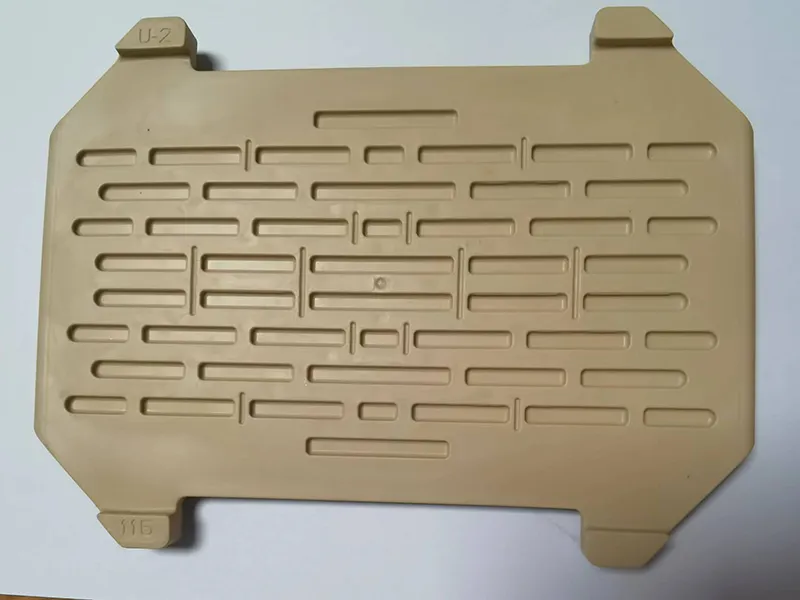

Rail pad U-2 Type Suitable for UIC54, 115RE rails
Material TPE (Thermoplastic Elastomer ) Density: 1.09g/㎝3 Tensile strength: 4.23Mpa Tensile Modulus: 2.97Mpa Melting point: 200-220℃ Shore hardness: ≥40D
Finish Natural

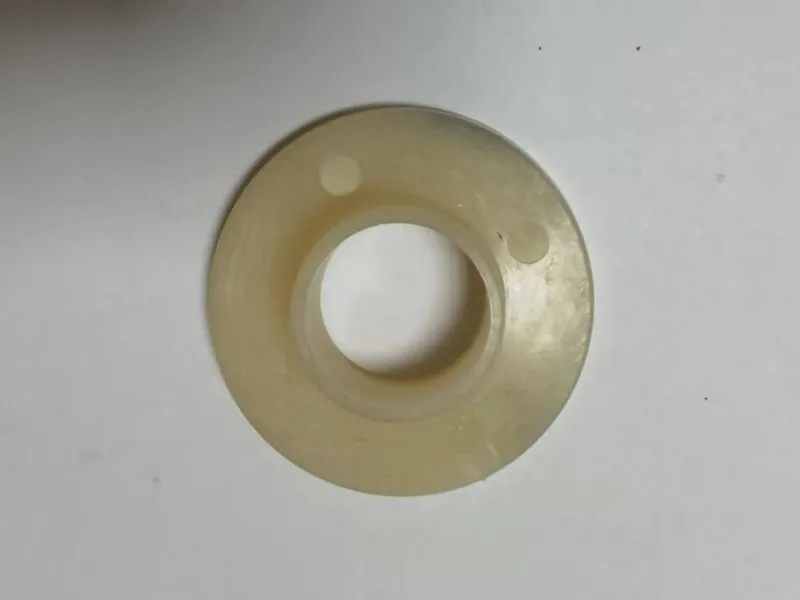

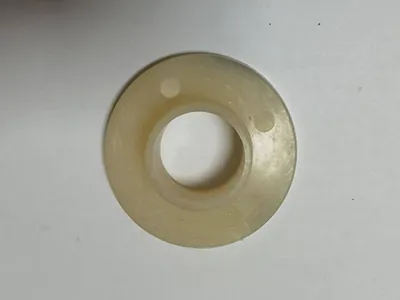

Nylon washer Type NY nylon washer
Material Reinforced Nylon 6 (PA6) Density: 1.15g/㎝3 Tensile strength: 66.3Mpa Elongation: 31.3% Melting point: 228℃ Insulation resistance: ≥2.8×1012Ω Hardness: ≥114HRR
Finish Natural

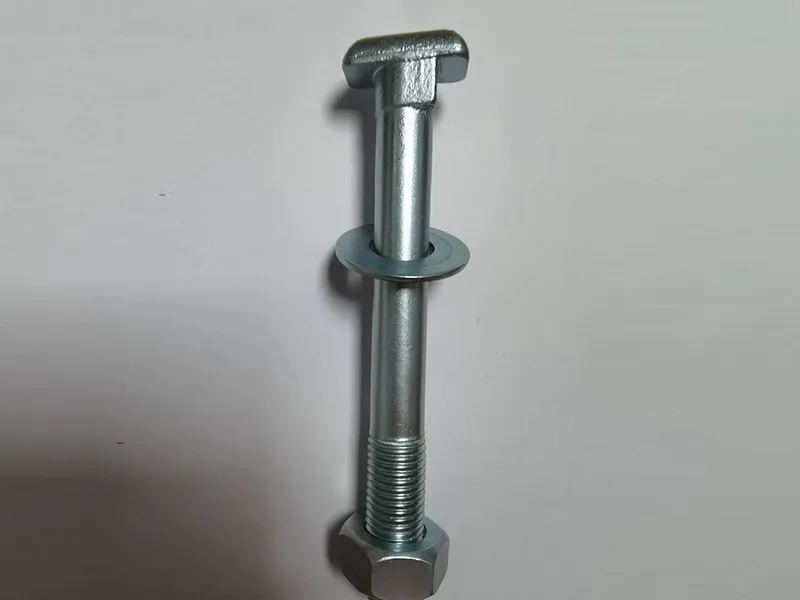

SL Bolt Type 7/8*186/201
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8.8 Tensile strength: ≥800Mpa Yield strength: ≥640Mpa Elongation: ≥12%
Nut Type 7/8
Material 45# Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Grade 8 HV295-353
Flat washer Type 50*23*3
Material Q235 Chemical composition(%): C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.3, P: ≤0.045, S: ≤0.045
Finish Plain oiled, oxide black, zinc plated, hot dip galvanized
Hardness HV200-300
