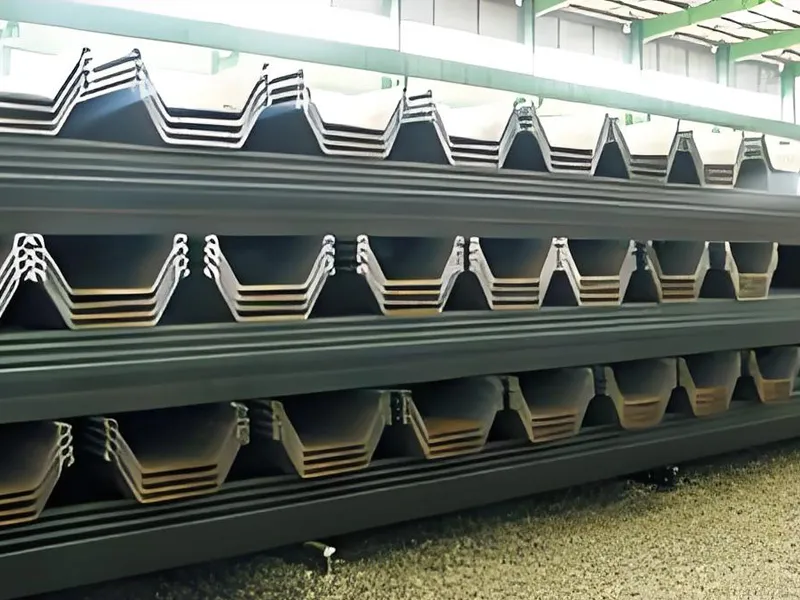

1. Japanese Standard U-Shaped Steel Sheet Pile
DimensionSize (width × height) | Active width (mm) | Active height (mm) | Plate thickness (mm) | Per price | Face per meter of pile wall width | ||||||
Section area (cm2) | Theoretical weight (kg/m) | Inertia Moment Ix(cm4) | Section modulus Wx(cm3) | Section area (cm2) | Theoretical weight (kg/m2) | Inertia moment Ix(cm4) | Section modulus Wx(cm3) | ||||
SPU-Ⅰ | 400 | 85 | 8 | 45.21 | 35.5 | 598 | 88 | 113 | 88.7 | 4500 | 529 |
SPU-Ⅱ | 400 | 100 | 10.5 | 61.18 | 48 | 1240 | 152 | 153 | 120.1 | 8740 | 874 |
SPU-Ⅲ | 400 | 125 | 13 | 76.42 | 60 | 2220 | 223 | 191 | 149.9 | 16800 | 1340 |
SPU-ⅢA | 400 | 150 | 13.1 | 74.4 | 58.4 | 2790 | 250 | 186 | 146 | 22800 | 1520 |
SPU-Ⅳ | 400 | 170 | 15.5 | 96.99 | 76.1 | 4670 | 362 | 242.5 | 190.4 | 38600 | 2270 |
SPU-VL | 500 | 200 | 24.3 | 133.8 | 105 | 7960 | 520 | 267.6 | 210 | 63000 | 3150 |
SPU-ⅥL | 500 | 225 | 27.6 | 153 | 120 | 11400 | 680 | 306 | 240 | 86000 | 3820 |
SPUⅡW | 600 | 130 | 10.3 | 78.7 | 61.8 | 2110 | 203 | 131.2 | 103 | 13000 | 1000 |
SPU-ⅢW | 600 | 180 | 13.4 | 103.9 | 81.6 | 5220 | 376 | 173.2 | 136 | 32400 | 1800 |
SPU-ⅣW | 600 | 210 | 18 | 135.3 | 106 | 8630 | 539 | 225.5 | 177 | 56700 | 2700 |
Standard | Grade | C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | N(Max) | CEQ(Max) |
JISA 5523 &JISA 5528 | SYW295 | 0.18 | 0.55 | 1.5 | 0.04 | 0.04 | 0.006 | 0.44 |
SYW390 | 0.18 | 0.55 | 1.5 | 0.04 | 0.04 | 0.006 | 0.46 |
Standard | Grade | Yield point (N/mm2) | Tensile strength (N/mm2) | Elongation (%) | Toughness [(O℃)(J)] |
JISA 5523 | SYW295 | ≧295 | ≧490 | ≧17 | ≧43 |
SYW390 | ≧390 | ≧540 | ≧15 | ≧43 | |
JISA 5528 | SY295 | ≧295 | ≧490 | ≧17 | - |
SY390 | ≧390 | ≧540 | ≧15 | - |

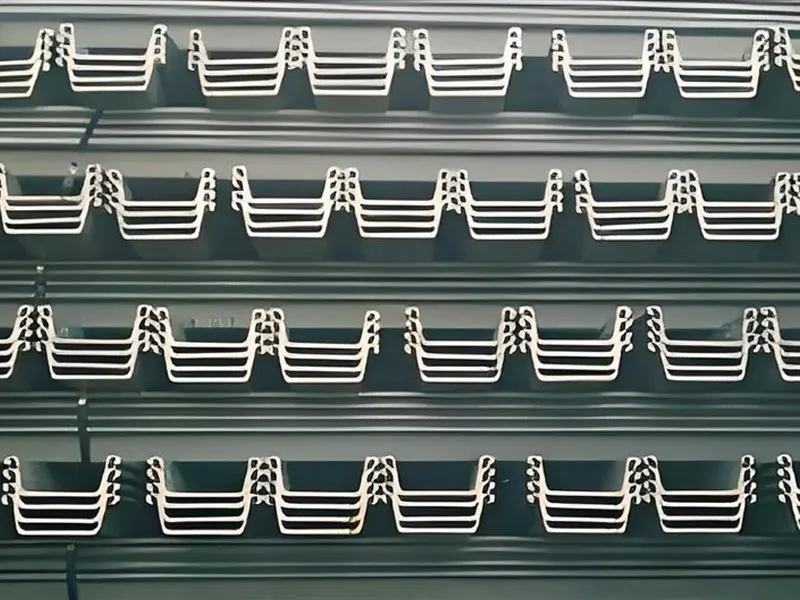

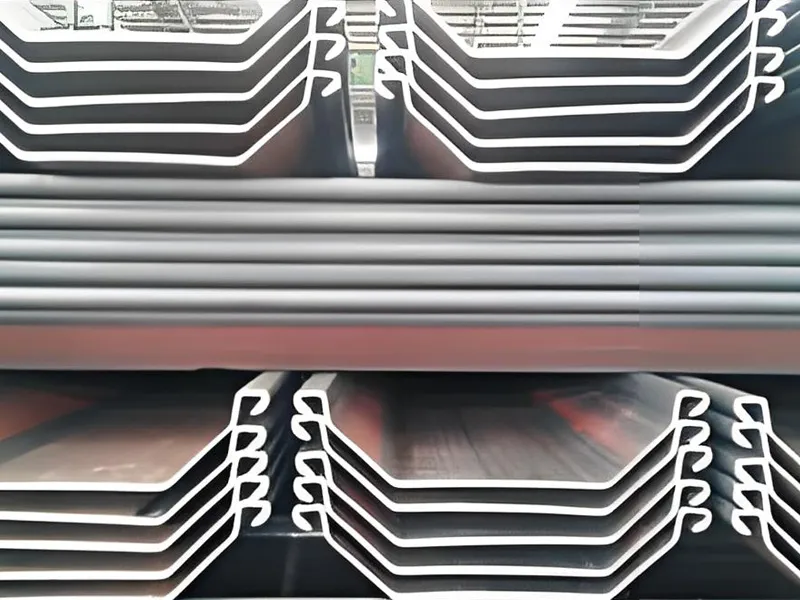

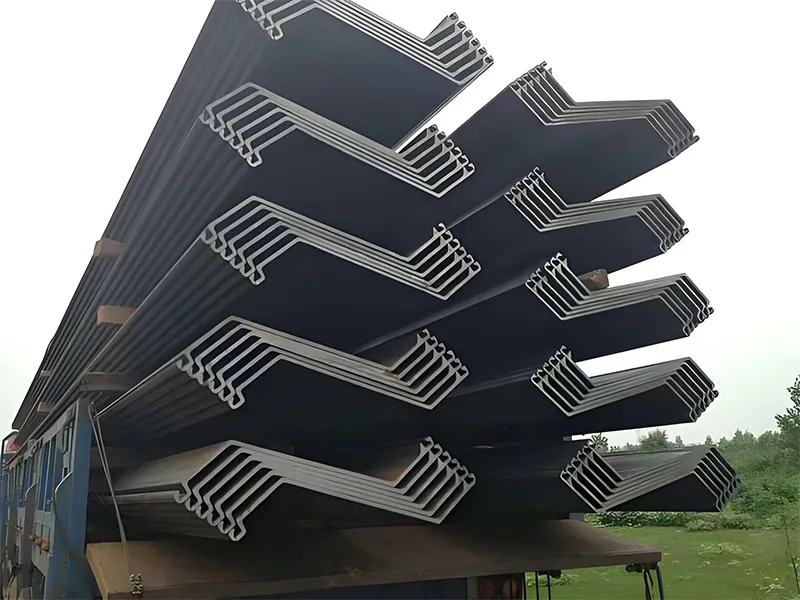

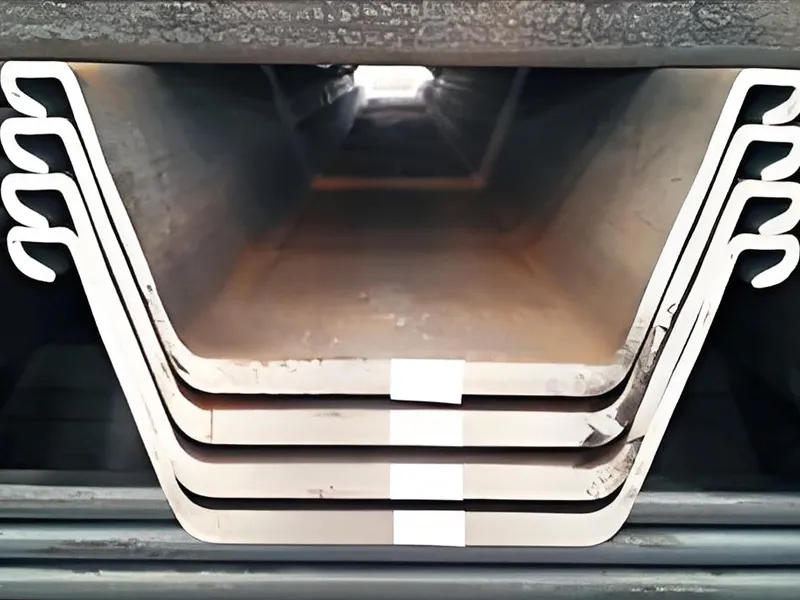

2. European Standard U-Shaped Sheet Pile
U-shaped sheet piles have been used extensively on both permanent and temporary works throughout the world .
U-Shaped piles have multiple advantages:
1. Wide range of sections in terms of geometrical characteristics, widening the choice of economically optimized profiles for particular project.
2. Great aptitude for repetitive use.
3. Wide range of section modulus, suitable for various type of construction purpose.
4. Service-proven to many types of project, such as permanent structures, temporary earth-retaining works and temporary cofferdams etc.
Size (Width×Height) | Width (mm) | Height (mm) | Thickness (mm) | Thickness (mm) | Plastic section modulus (cm3/m) | Weight (kg/m) | Inertia moment Ix (cm4) | Elastic section modulus (cm3/m) |
SPU601 | 600 | 309 | 7.5 | 6.5 | 858 | 46.7 | 11496 | 742 |
SPU602 | 600 | 309 | 8.2 | 8 | 990 | 54.3 | 13075 | 845 |
SPU603 | 600 | 309 | 9.7 | 8.4 | 1308 | 64.8 | 18251 | 1180 |
SPU604 | 600 | 380 | 10.5 | 9 | 1822 | 74.1 | 30726 | 1620 |
SPU605 | 600 | 410 | 12.8 | 9 | 2256 | 82.4 | 41127 | 2006 |
SPU606A | 600 | 420 | 14 | 9 | 2476 | 86.2 | 46217 | 2200 |
SPU18-1 | 600 | 430 | 10.2 | 8.4 | 1988 | 72.6 | 35950 | 1670 |
SPU22-1 | 600 | 450 | 11.1 | 9 | 2422 | 81.9 | 46380 | 2060 |
SPU28 | 600 | 454 | 15.2 | 10.1 | 3269 | 101.8 | 64460 | 2840 |
SPU32 | 600 | 452 | 19.5 | 11 | 3687 | 114.1 | 72320 | 3200 |
SPU16 | 750 | 411 | 11.5 | 9.3 | 1891 | 86.3 | 32850 | 1600 |
SPU20 | 750 | 444 | 12 | 10 | 2339 | 96.9 | 44440 | 2000 |
SPU25 | 750 | 450 | 14.5 | 10.2 | 2866 | 110.4 | 56240 | 2500 |
3. European Standard Z-Shaped Pile
The Z-shaped profile presents the following advantages:
1. Extremely competitive section modulus
2. Economical solution
3. Large width resulting in high installation performance
4. High tensile strength
5. Ideal for permanent structure project

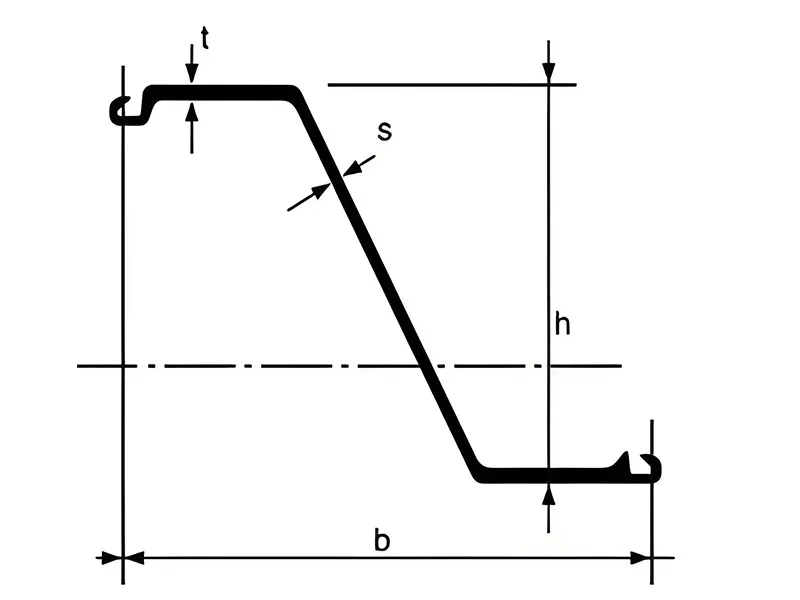

Size (Width×Height) | Active width (mm) | Active height (mm) | Plate thickness (mm) | Theoretical weight (kg/m) | Inertia moment Ix (cm4) | Elastic section modulus (cm3/m) | ||
t | s | Single pile(Kg/m) | Wall (kg.m2) | |||||
SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 | 242.2 | 115921 | 4820 |
SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 | 96.7 | 18880 | 1205 |
SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 | 105.7 | 20540 | 1305 |
SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 | 114.7 | 22190 | 1405 |
SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 | 104.4 | 36230 | 1730 |
SPZ18 | 700 | 418 | 9.1 | 9.1 | 76.9 | 110.2 | 37726 | 1807 |
SPZ19 | 700 | 421 | 9.5 | 9.5 | 80 | 114.3 | 39380 | 1870 |
SPZ20 | 700 | 421 | 10 | 10 | 83.5 | 119.3 | 40960 | 1945 |
SPZ24 | 700 | 459 | 1.2 | 11.2 | 95.7 | 136.7 | 55820 | 2430 |
SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 | 147.7 | 59759 | 2604 |
SPZ28 | 700 | 461 | 13.2 | 13.2 | 110 | 157.2 | 63620 | 2760 |
SPZ36 | 700 | 499 | 15 | 11.2 | 118.6 | 169.5 | 89610 | 3590 |
SPU38 | 700 | 500 | 16 | 12.2 | 126.4 | 180.6 | 94840 | 3795 |
SPU40 | 700 | 501 | 17 | 13.2 | 134.2 | 191.7 | 100080 | 3995 |

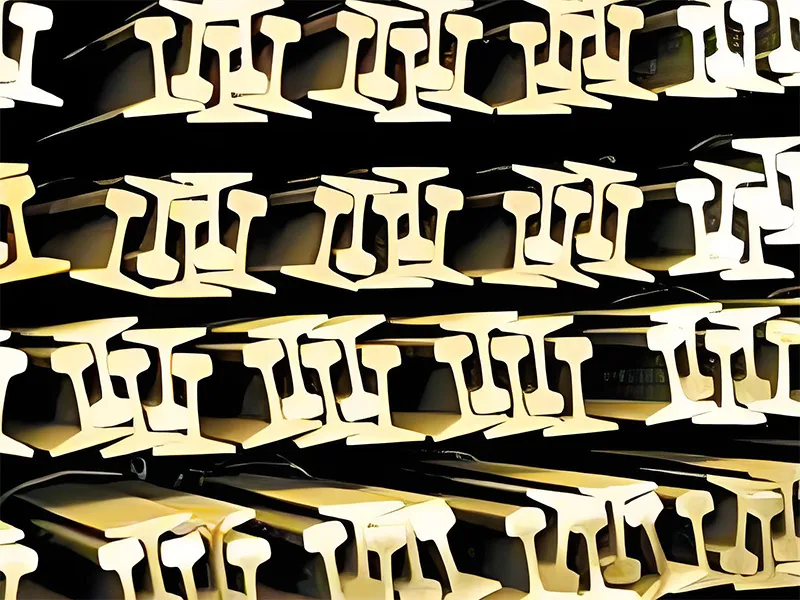

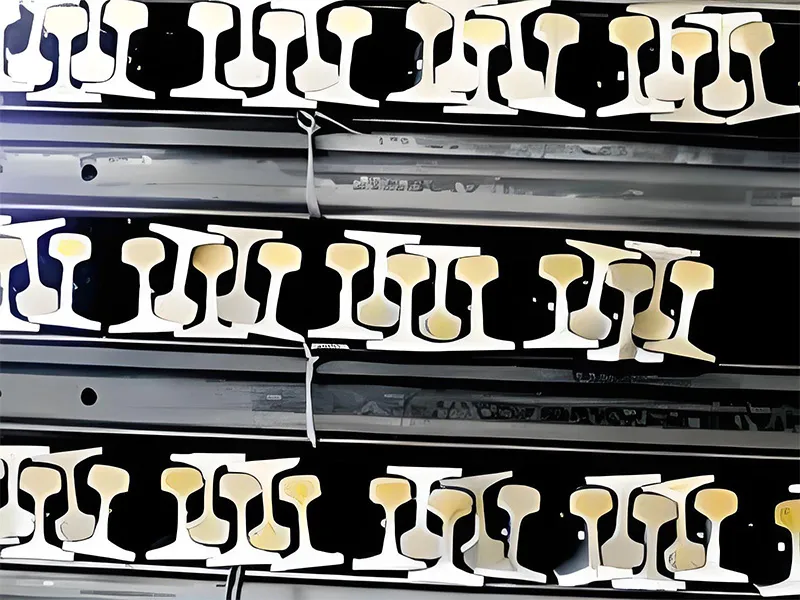

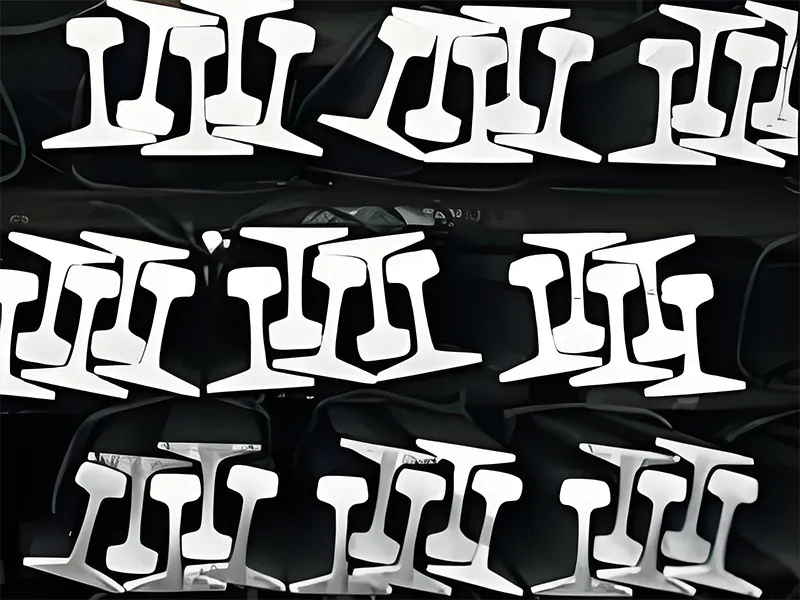

4. Chinese Standard Light Rail
Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Standard YB222-63: 8KG, 18KG, 24KG
Standard: GB11264-89 | |||||||
Size | Dimension(mm) | Weight (kg/m) |
Material | Length(m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
GB6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235B | 6-12 |
GB9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235B | 6-12 |
GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235B/55Q | 6-12 |
GB15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235B/55Q | 6-12 |
GB22KG | 50.3 | 93.66 | 93.66 | 10.72 | 23.3 | Q235B/55Q | 6-12 |
GB30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235B/55Q | 6-12 |
Standard: YB222-63 | |||||||
8KG | 25 | 65 | 54 | 7 | 8.42 | Q235B | 6-12 |
18KG | 40 | 90 | 80 | 10 | 18.06 | Q235B/55Q | 6-12 |
24KG | 51 | 107 | 92 | 10.9 | 24.46 | Q235B/55Q | 6-12 |

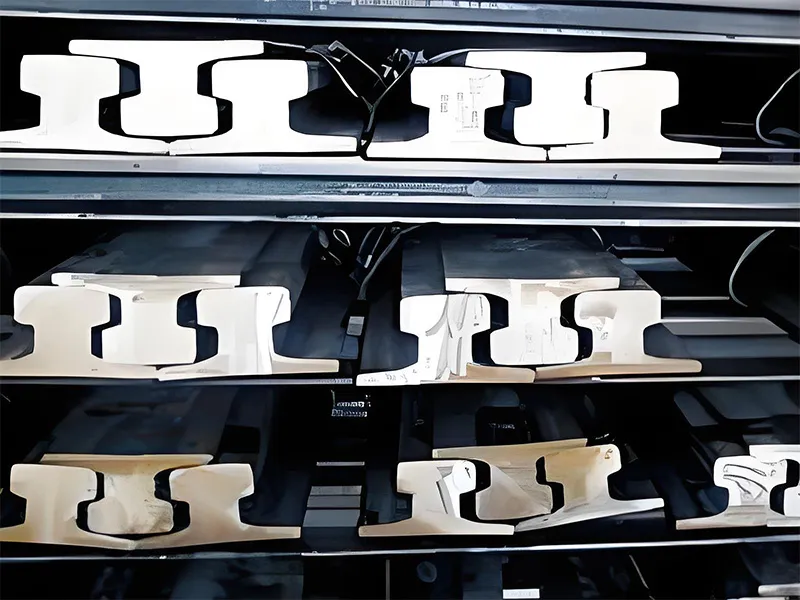

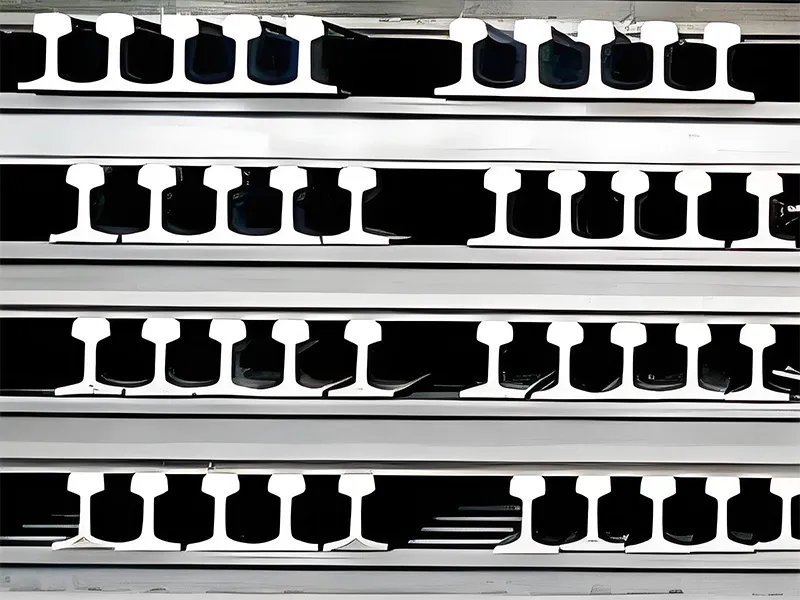

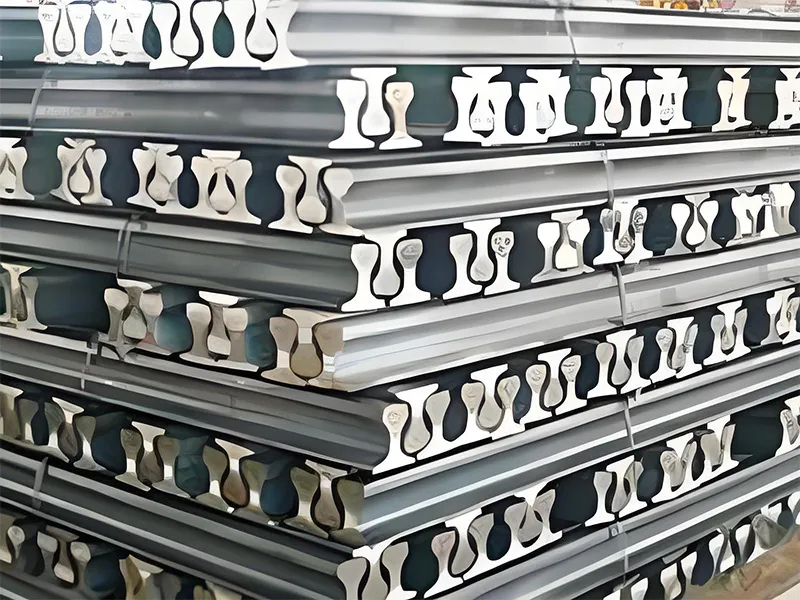

5. Chinese Standard Heavy Rail
Standard GB2585-2007: P38KG, P43KG, P50KG, P60KG
SpecificationsStandard: GB2585-2007 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
P38KG | 68 | 134 | 114 | 13 | 38.733 | U71Mn | 12.5-25 |
P43KG | 70 | 140 | 114 | 14.5 | 44.653 | U71Mn | 12.5-25 |
P50KG | 70 | 152 | 132 | 15.5 | 51.514 | U71Mn | 12.5-25 |
P60KG | 73 | 170 | 150 | 16.5 | 61.64 | U71Mn | 12.5-25 |

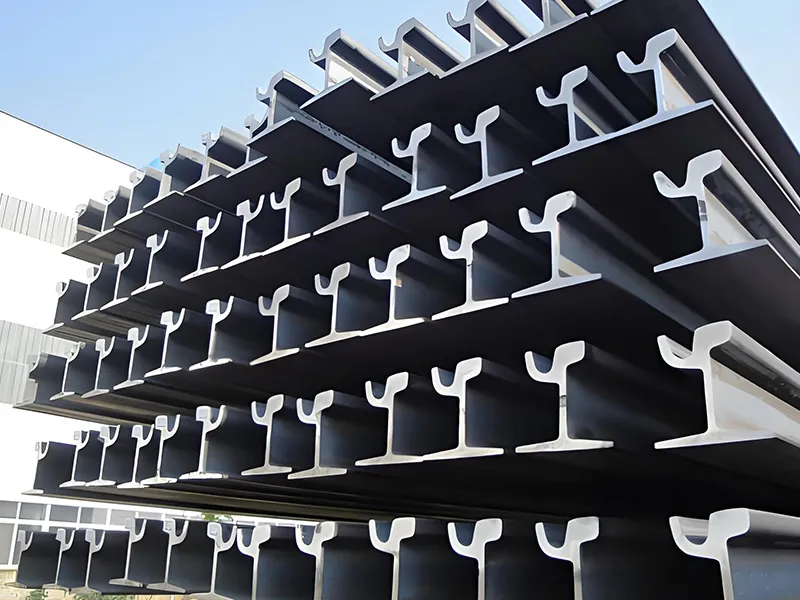

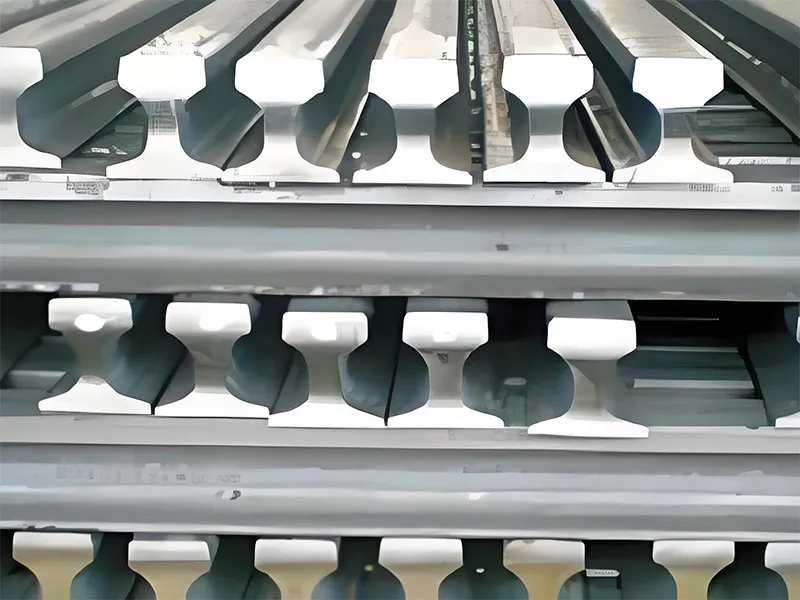

6. Chinese Standard Crane Rail
Standard YB/T5055-93: QU70, QU80, QU100, QU120
SpecificationsStandard: YB/T5055-93 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
QU 70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn | 12 |
QU 80 | 80 | 130 | 130 | 32 | 63.69 | U71Mn | 12 |
QU 100 | 100 | 150 | 150 | 38 | 88.96 | U71Mn | 12 |
QU 120 | 120 | 170 | 170 | 44 | 118.1 | U71Mn | 12 |

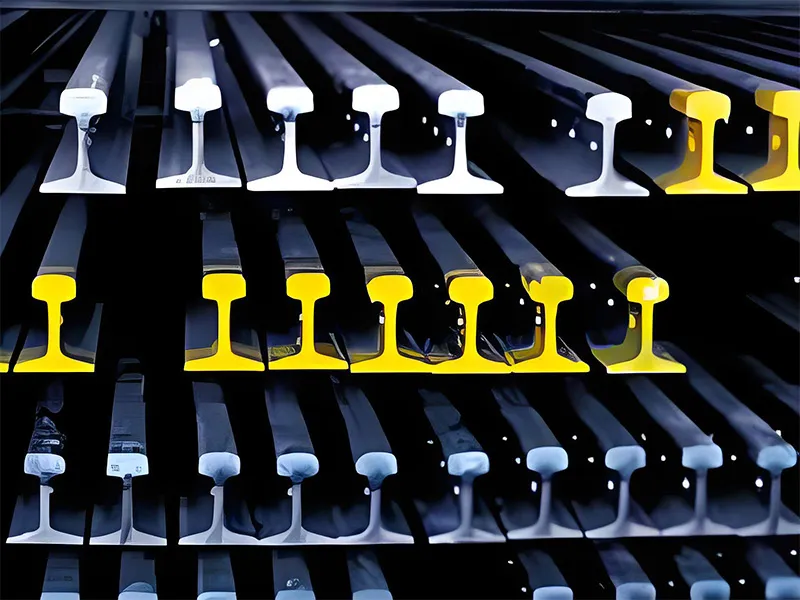

7. American Standard Steel Rail
Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS
SpecificationsStandard: ASTMA1, AREMA | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
90RA | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 | 900A/1100 | 12-25 |
115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | 900A/1100 | 12-25 |
136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
175LBs | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 | 900A/1100 | 12-25 |
8. BS Standard Steel Rail
Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A
SpecificationsStandard: BS11: 1985 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
50 O | 52.39 | 100.01 | 100.01 | 10.32 | 24.833 | 700 | 6-18 |
60 A | 57.15 | 114.3 | 109.54 | 11.11 | 30.618 | 900A | 6-18 |
75 A | 61.91 | 128.59 | 114.3 | 12.7 | 37.455 | 900A | 8-25 |
75 R | 61.91 | 128.59 | 122.24 | 13.1 | 37.041 | 900A | 8-25 |
80 A | 63.5 | 133.35 | 117.47 | 13.1 | 39.761 | 900A | 8-25 |
80 R | 63.5 | 133.35 | 127 | 13.49 | 39.674 | 900A | 8-25 |
90 A | 66.67 | 142.88 | 127 | 13.89 | 45.099 | 900A | 8-25 |
100 A | 69.85 | 152.4 | 133.35 | 15.08 | 50.182 | 900A | 8-25 |
113 A | 69.85 | 158.75 | 139.7 | 20 | 56.398 | 900A | 8-25 |
9. UIC860 Standard Steel Rail
Standard UIC860: UIC50, UIC54, UIC60
SpecificationsStandard: UIC860 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
UIC50 | 70 | 152 | 125 | 15 | 50.46 | 900A/1100 | 12-25 |
UIC54 | 70 | 159 | 140 | 16 | 54.43 | 900A/1100 | 12-25 |
UIC60 | 74.3 | 172 | 150 | 16.5 | 60.21 | 900A/1100 | 12-25 |
10. JIS Standard Steel Rail
Standard: JIS
SpecificationsStandard: JIS E1103-91/JISE 1101-93 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
JIS 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | JIS E standard | 9-10 |
JIS 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | 9-10 | |
JIS 30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | 9-10 | |
JIS 37A | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 10-25 | |
JIS 50N | 65 | 153 | 127 | 15 | 50.4 | 10-25 | |
CR 73 | 100 | 135 | 140 | 32 | 73.3 | 10-12 | |
CR 100 | 120 | 150 | 155 | 39 | 100.2 | 10-12 |
11. EN Standard Steel Rail
Standard EN 13674-1-2003: 49E1, 49E2, 50E1, 50E2, 50E4, 50E5, 50E6, 54E1, 54E2, 54E3, 55E1, 60E1
SpecificationsStandard: EN 13674-1-2003 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
49 E1 | 67 | 149 | 125 | 14 | 49.39 | R260/R350HT | 12-25 |
49 E2 | 67 | 148 | 125 | 14 | 49.1 | R260/R350HT | 12-25 |
50 E1 | 65 | 153 | 134 | 15.5 | 50.37 | R260/R350HT | 12-25 |
50 E2 | 72 | 151 | 140 | 15 | 49.97 | R260/R350HT | 12-25 |
50 E4 | 70 | 152 | 125 | 15 | 50.46 | R260/R350HT | 12-25 |
50 E5 | 67 | 148 | 135 | 14 | 49.9 | R260/R350HT | 12-25 |
50 E6 | 65 | 153 | 140 | 15.5 | 50.9 | R260/R350HT | 12-25 |
54 E1 | 70 | 159 | 140 | 16 | 54.77 | R260/R350HT | 12-25 |
54 E2 | 67.01 | 161 | 125 | 16 | 53.82 | R260/R350HT | 12-25 |
54 E3 | 67 | 154 | 125 | 16 | 54.57 | R260/R350HT | 12-25 |
55 E1 | 62 | 155 | 134 | 19 | 56.03 | R260/R350HT | 12-25 |
60 E1 | 72 | 172 | 150 | 16.5 | 60.21 | R260/R350HT | 12-25 |
12. IN Standard Steel Rail
Standard EN 13674-1-2003: A55, A65, A75, A100, A120
SpecificationsStandard: DIN536 | |||||||
Size | Dimension(mm) | Weight (kg/m) | Material | Length (m) | |||
Head(mm) | Height(mm) | Bottom(mm) | Web(mm) | ||||
A55 | 55 | 65 | 150 | 31 | 31.8 | 900A | 10-12 |
A65 | 65 | 75 | 175 | 38 | 43.1 | 900A | 10-12 |
A75 | 75 | 85 | 200 | 45 | 56.2 | 900A | 10-12 |
A100 | 100 | 95 | 200 | 60 | 74.3 | 900A | 10-12 |
A120 | 120 | 105 | 220 | 72 | 100 | 900A | 10-12 |
13. Grooved Rail
Standard BS EN 14811: 2006: 59R1 59R2 60R1 60R2
SpecificationsSize | Height (mm) | Bottom (mm) | Head A (mm) | Head B(mm) | Channel A (mm) | Channel B (mm) | Web (mm) | Weight (kg/m) |
59R1 | 180 | 180 | 113 | 56 | 42 | 15 | 12 | 58.97 |
59R2 | 180 | 180 | 113 | 55.83 | 42.52 | 14.65 | 12 | 58.14 |
60R1 | 180 | 180 | 113 | 56 | 36 | 21 | 12 | 60.59 |
60R2 | 180 | 180 | 113 | 55.83 | 36.34 | 20.83 | 12 | 59.75 |
